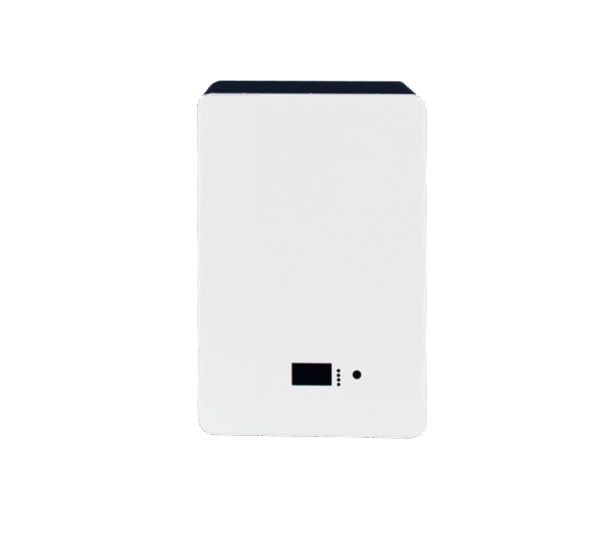

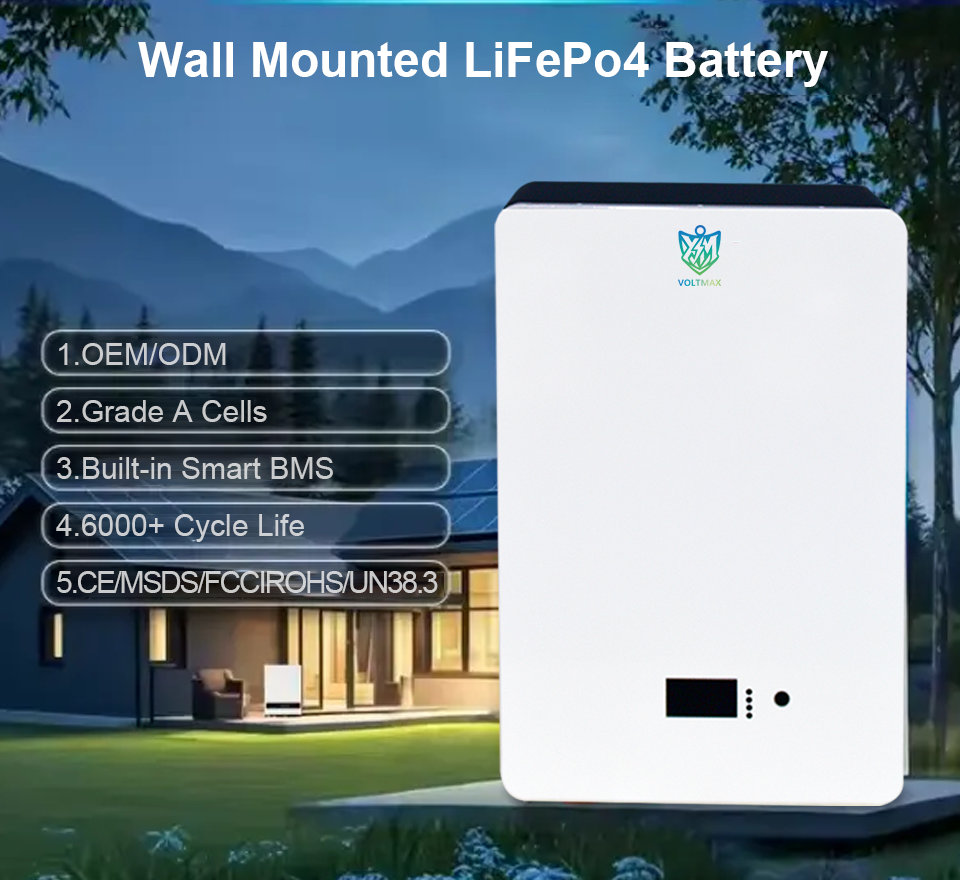

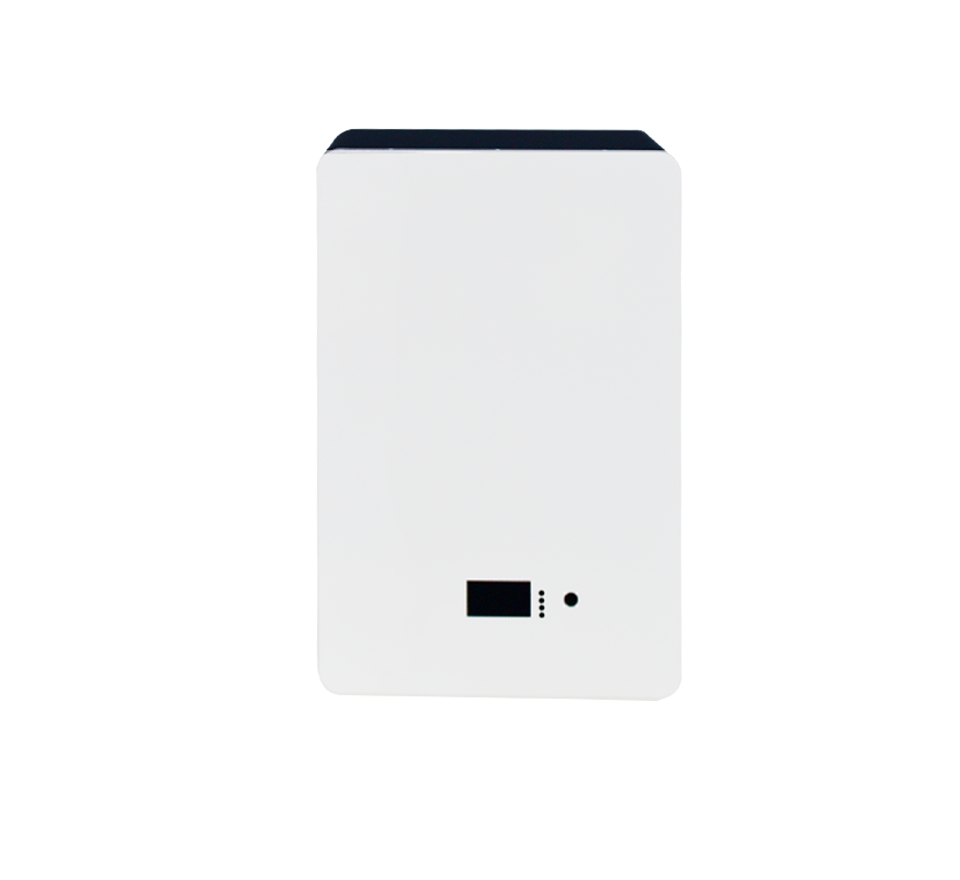

25.6V 200Ah Powerwall 5.12kwh Wall Mounted LIFEPO4 Battery For Residential Solar Energy Storage
Supports over 6,000 charge cycles at 80% Depth of Discharge (DOD). Operates seamlessly in temperatures ranging from -4°F to 167°F. Equipped with a Battery Management System (BMS) for protection against overcharging, short circuits, and extreme temperatures. IP56+ rating ensures reliability for both indoor and outdoor environments. Lightweight and space-efficient, making installation quick and easy.
Type: LiFePO4 Battery
Cathode Material: LFP
Minimum Order Quantity: 50
Delivery Time: 20 days
Customization/OEM/ODM: Yes
Factory: AOGE POWER
Delivery Method: FOB, EXW, CIF
Payment Method: T/T, L/C, PayPal
Shipping Methods: 10 feet, 20 feet, 40 feet, 60 feet
AOGE POWER batteries are made with really good Grade A+ LiFePO4 cells. This gives them great safety and performance. When we add a smart Battery Management System (BMS), it keeps a close eye on and balances each cell all the time. That means you get the best protection for whatever you use the batteries in.These batteries have all the safety features you need: protection against short circuits, overcharging, over-discharging, overvoltage, and overcurrent. The circuit is designed to be well-balanced for extra safety. The tough build stops things like explosions or fires, even in really tough conditions.
Key Features & Benefits
Long-Lasting Battery Life and a Solid Warranty :They can go through over 6,000 charge cycles, so you can count on them for a long time. And with a strong 5-year warranty, you don’t have to worry about replacing them often.
Monitoring & Protection Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit
Communication : RS485 / RS232 / CAN-bus
Optional Functions :Bluetooth / WiFi / 4G / 5G / Circuit Breaker / Heating / Active Balance / LED Touch Screen / APP
Accessories : Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire
Compatible Inverters :Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc.
Product Description

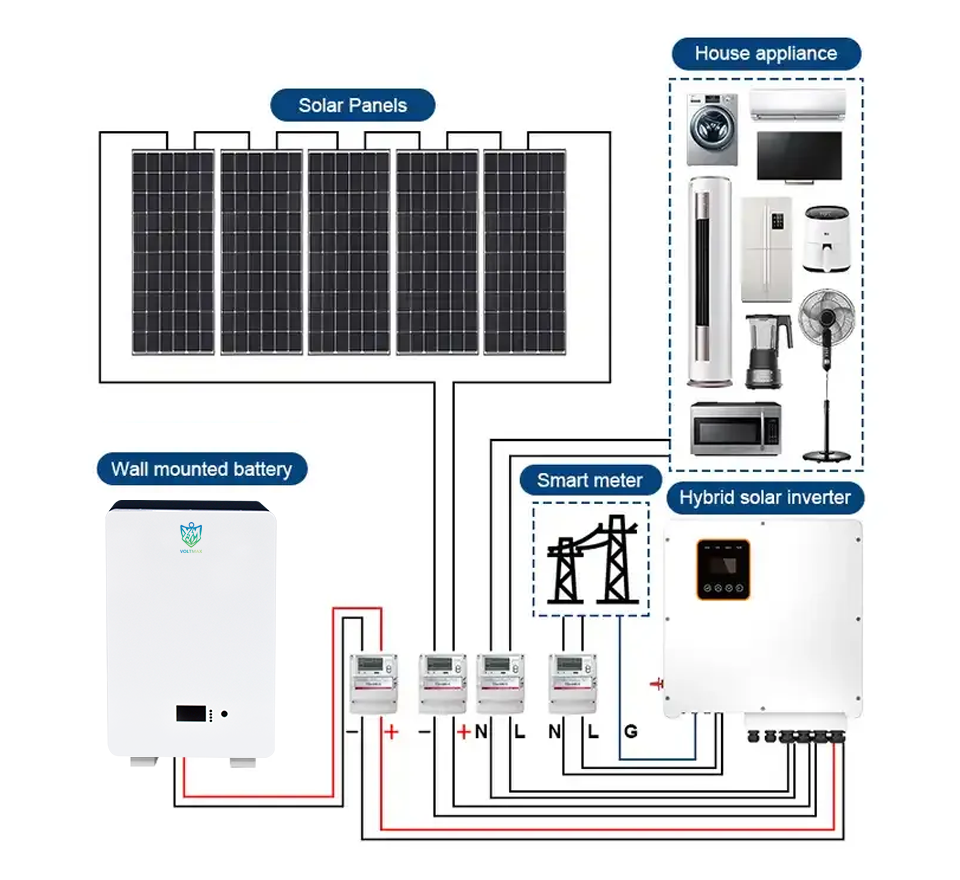

The AOGE POWER household energy storage system is a high-security, high-reliability solar energy storage system based on lithium iron phosphate batteries and equipped with a battery management system (BMS). It stores the remaining electricity generated by the rooftop photovoltaic panels and uses it at a lower cost. Electricity rates, supply your home appliances during the day, saving your cost on electricity bills and reducing your dependence on the grid.
As a leading Domestic Energy Storage Solution, this product is designed to seamlessly integrate with residential solar battery storage systems, enabling users to store excess energy generated during the day for use during peak hours or in case of power outages. This not only reduces reliance on the grid but also helps lower electricity bills and minimize the carbon footprint of households.
Whether you are looking to enhance the efficiency of your solar energy system or simply want a reliable backup power source for your home, the Residential Energy Storage product offers a comprehensive solution that combines cutting-edge technology with user-friendly design. With its high-rated power, advanced inverter, and versatile storage capacity, this system is the ideal choice for homeowners seeking a reliable and sustainable energy storage solution.
Characteristic | Specification |
Model | AG25200LFP-WMLV |
Cell Format | LFP3.2V200AH/8S1P |
Rated Voltage | 25.6V |
Rated Capacity | 200Ah |
Rated Energy | 5.12KWh |
Charge Voltage | 28.4-29.2V |
RCMD Charge Current | 50A |
Max Charge Current | 100A |
Discharge Cut-off Volt. | 21.6V |
Max Discharge Current | 100A |
Dimension (L*W*H) | 650*385*145MM |
Weight(APPROX.)KG±5% | 45kg |
Charge Temperature | 0℃to 55℃ |
Operate Temperature | -10℃to 60℃ |
Storage Temperature | 0℃to 40℃ |
Environmental | <95%RH |
Protection Rating | IP20 |
Cycle Life | 8000Cycle@25℃,60%DOD,0.2C |
6000Cycle@25℃,80%DOD,0.2C | |
Scalability | Max 16 parallel |
Design life/Warranty | 10 years / 5 years |
Cell | IEC62619/UL1642 |
Battery Pack | UN38.3/CE/IEC62619/IEC61000 |
Display | SOC status indicator,LED indicator |
Communication | CAN/RS485/RS232 |
Optional Functions | bluetooth/wifi/lcd/circuit breaker |
Compatible inverter | victron/sol-ark/SMA/GOODWE/SOLIS/SAJ/GROWATT/SRNE/VOLTRONIC/DEYE/ETC. |
Display | SOC status indicator,LED indicator |
Communication | CAN/RS485/RS232 |
Optional Functions | bluetooth/wifi/lcd/circuit breaker |
Compatible inverter | victron/sol-ark/SMA/GOODWE/SOLIS/SAJ/GROWATT/SRNE/VOLTRONIC/DEYE/ETC. |
