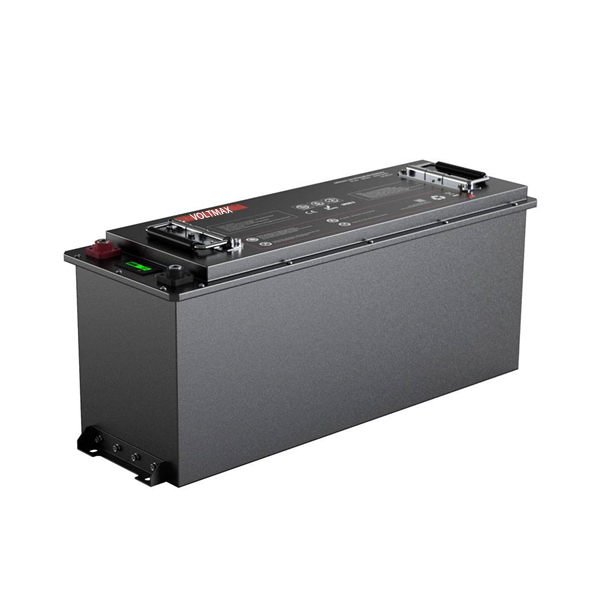

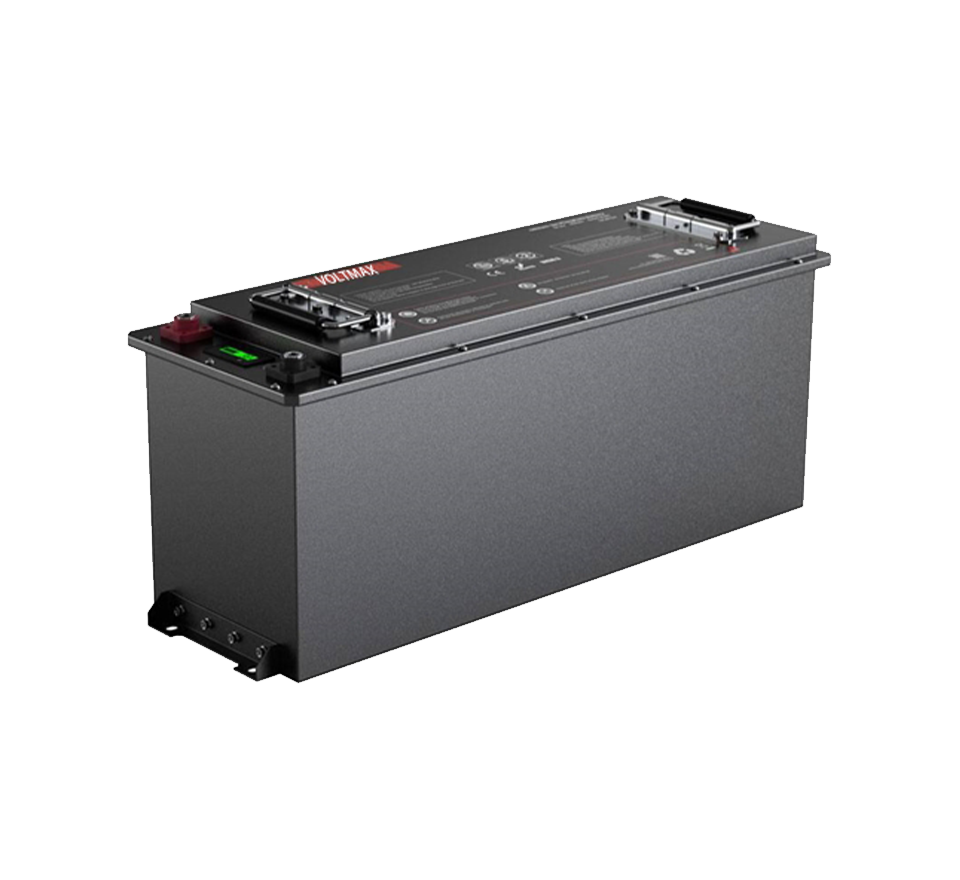

This 48V (51.2V) 180Ah lithium battery, produced by Aoge Power Lithium Battery, a leading high-performance lithium-ion battery manufacturer in China, utilizes advanced LiFePO4 technology. This battery offers an outstanding energy solution for various applications, ensuring reliability and a long service life.
Key features:
High energy output: With a rated capacity of 184Ah and an energy output of 9,420Wh, this battery is highly suitable for powering demanding applications.
Outstanding cycle life: The designed service life exceeds 4,000 cycles when the depth of discharge (DOD) reaches 80%, significantly reducing the need for frequent replacement.
Durable building: The battery has an IP65 rating, which can prevent dust and water from entering and is suitable for use in challenging environments.
Intelligent Battery Management System (BMS) : Equipped with an intelligent BMS, it can prevent overcharging, overheating and short circuits, ensuring safe operation.
Multi-functional connection options: Supports optional functions such as Bluetooth, WiFi, and LCD display to enhance monitoring and control.
48V (51.2V) 180Ah Lithium Battery Suitable for various applications, including:
· Electric scooter
· Electric pedal carts and electric tricycles
· Electric motorcycles
· Automated Guided Vehicles (AGV)
· Renewable energy storage systems
The charging voltage is 58.4V and the discharge voltage is 40V. This battery has been optimized for various operational requirements. It can operate within a temperature range of -20°C to 65°C, making it flexible enough to be suitable for different industrial environments. The lightweight design of the battery facilitates installation and integration into existing systems, ensuring your equipment operates efficiently throughout the day. Additionally, the battery supports fast charging functionality, which can shorten the turnaround time between uses. As a reliable factory in China, Aoge Power is committed to providing high-quality lithium-ion batteries to enhance your operational efficiency and sustainability.
48V (51.2V) 180Ah Lithium Battery not only reduces downtime but also helps lower operating costs due to its high efficiency and long lifespan. Investing in this battery means choosing a Aoge Power solution that can meet the needs of modern electric vehicles and industrial applications, and support your business growth and sustainability goals. Choose Aoge Power to meet your lithium battery needs and experience unparalleled performance and service.
| LFP TO REPLACE VRLA BATTERY FOR RECREATIONAL VEHICLE/GOLF CART -AOGE 48V LPRV/LPGC SERIES | |
| MODEL | AG48184LFP-LPRV/LPGC |
| Rated Voltage | 51.2V |
| Rated Capacity | 184Ah |
| Rated Energy | 9420Wh |
| MAX.Charge Voltage | 56-58.4V |
| RECMD charge current(0.2C) | 20A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 58.4V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 100A |
| Discharge CUT-OFF Volt. | 40V |
| RECMD discharge current(0.2C) | 20A |
| Max.Discharge Current(1C) | 100A |
| Peak discharge current(2C) (MAX. 3 second) | |
| Dimensions(L*W*H*TH)MM | 678*240*285 |
| Weight(APPROX)KG±3% | 65KG |
| Max. Parallel and Series QTY | 4P/4S |
| IP Rating | IP65 |
| Cycle Life | >4000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | M8 |
| Battery Case | METAL |
| Design Life/WARRANTY | 10 Years/3 YEARS |
